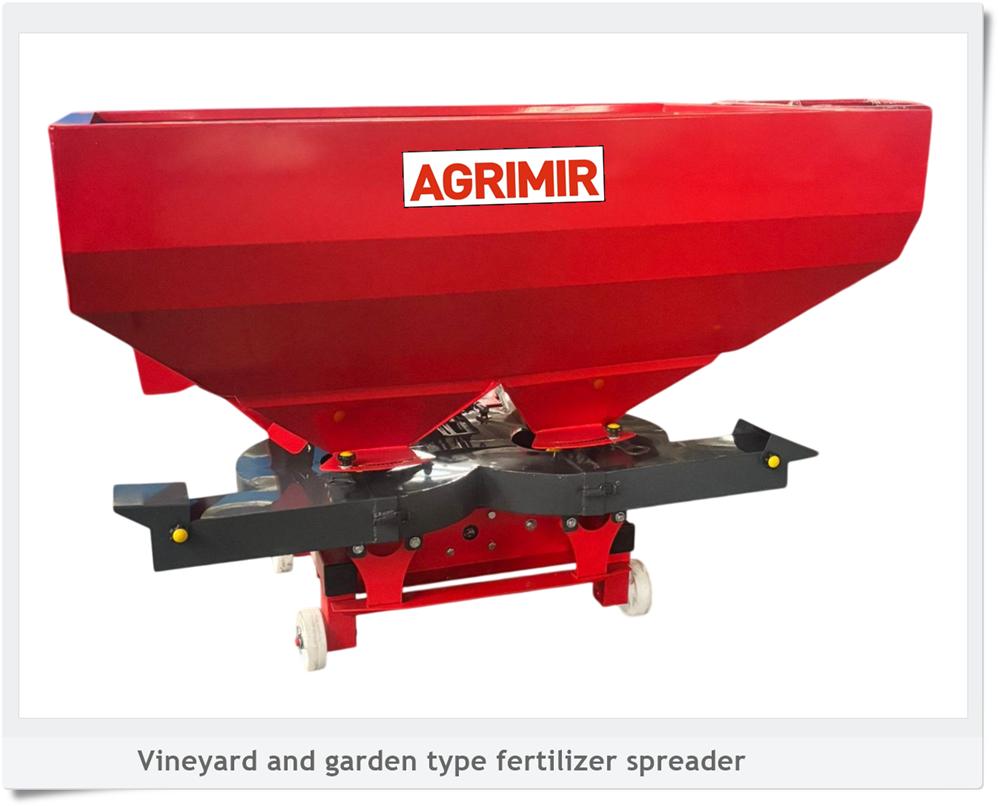

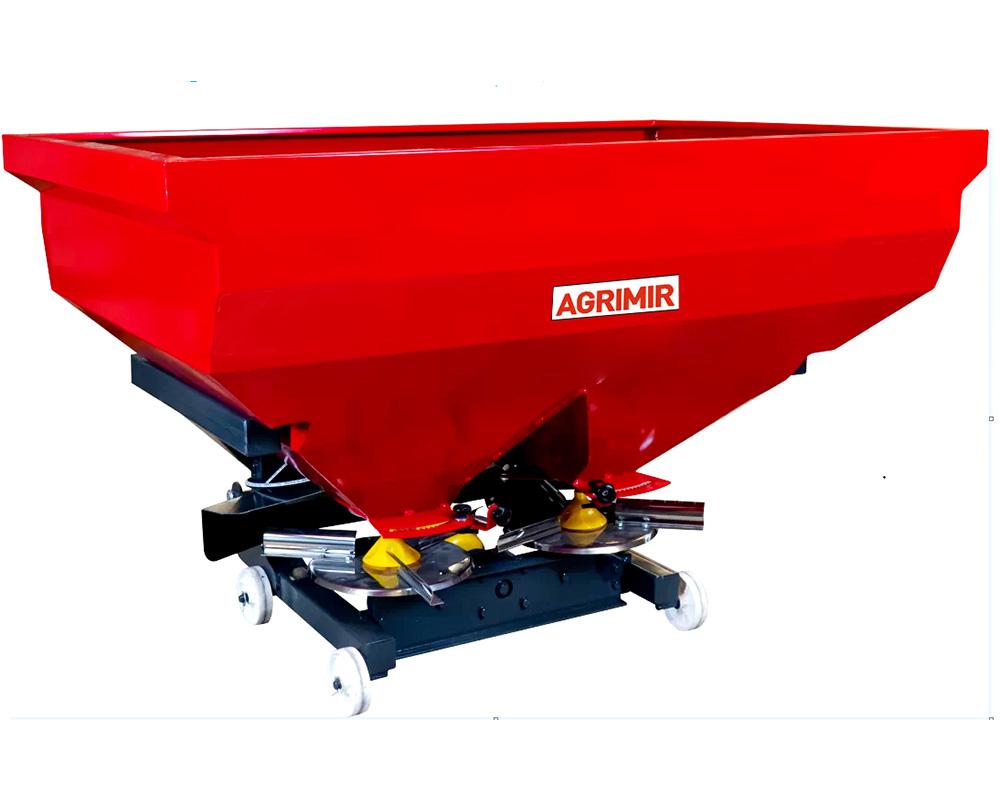

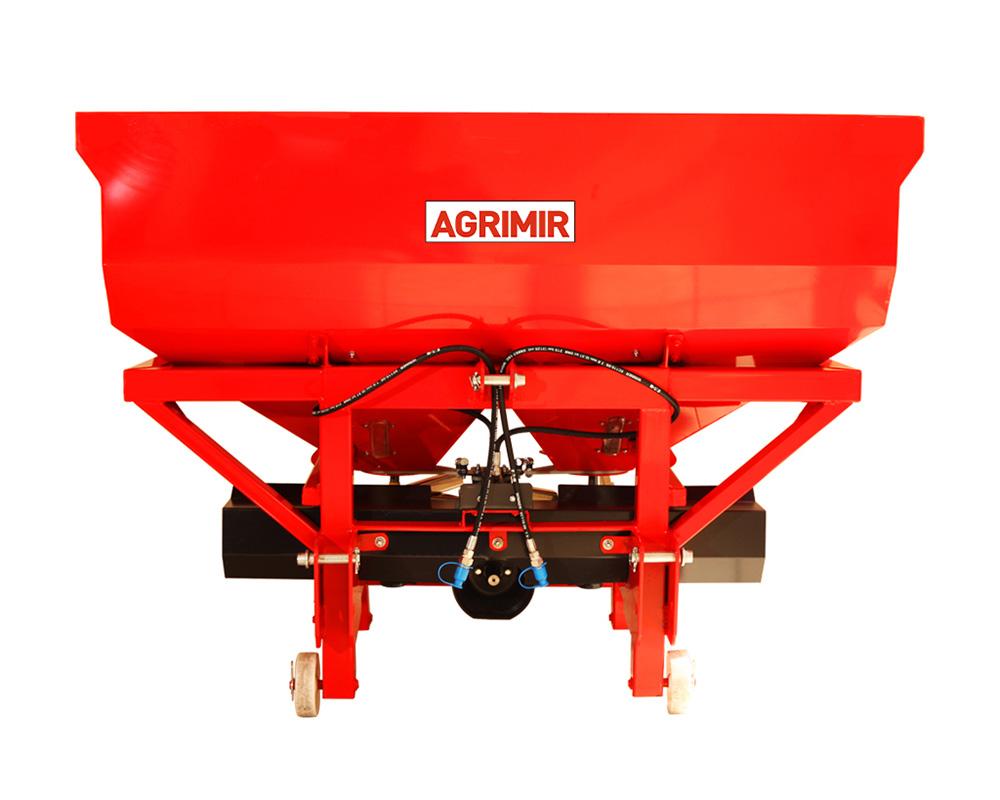

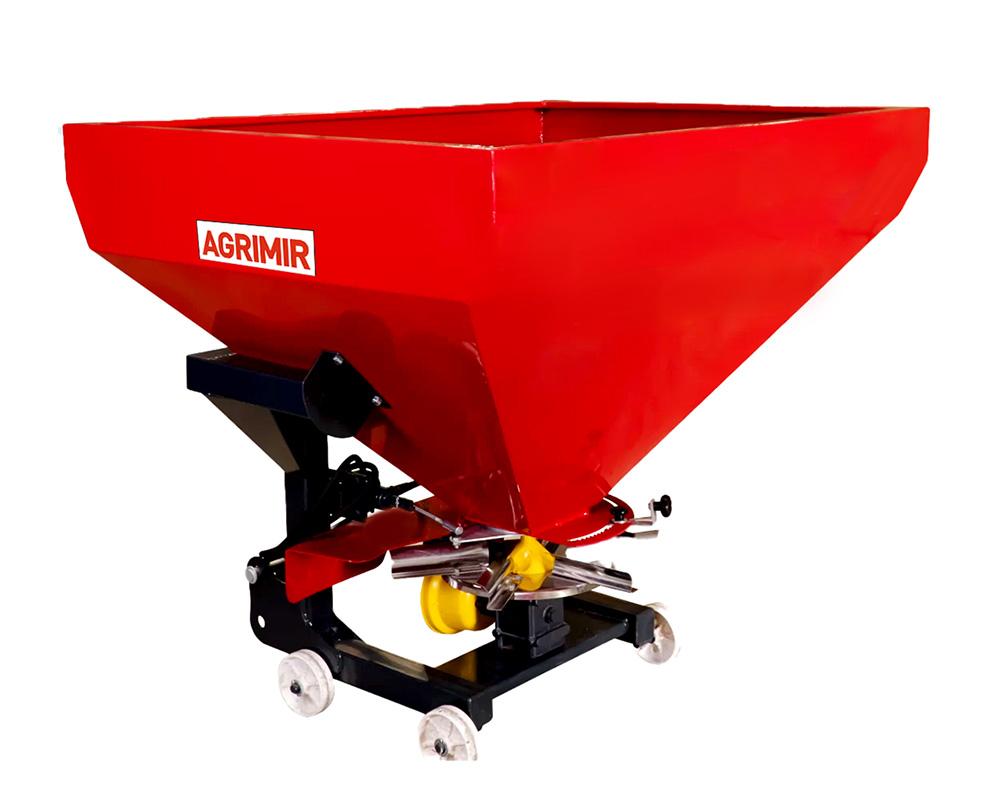

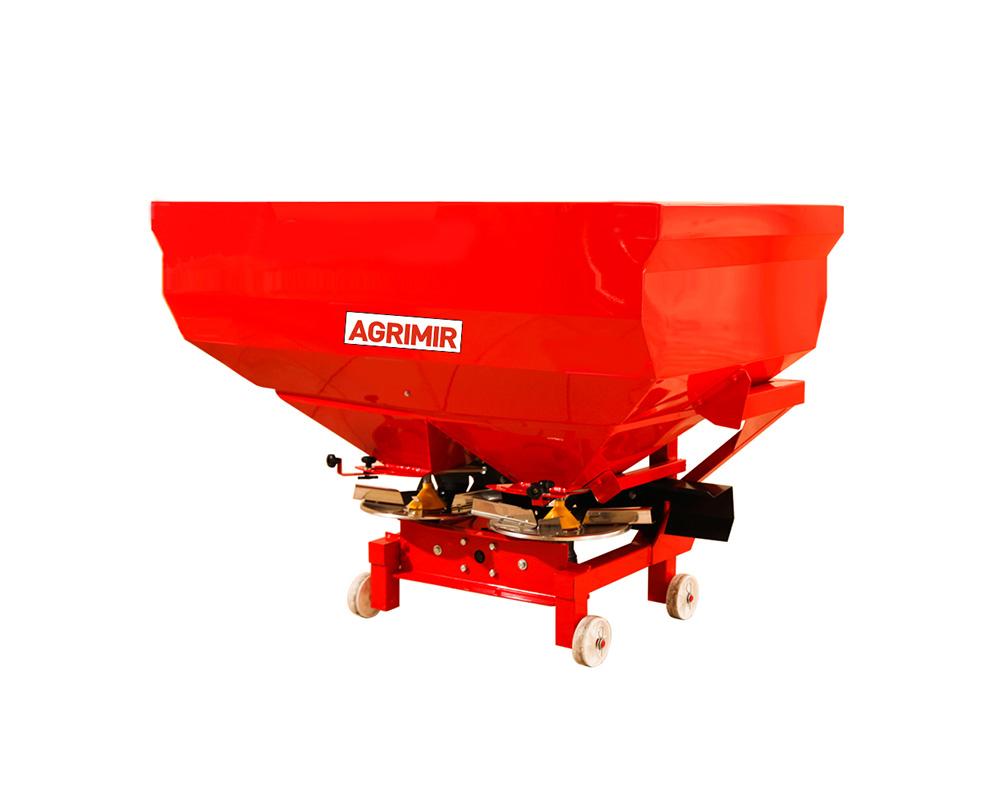

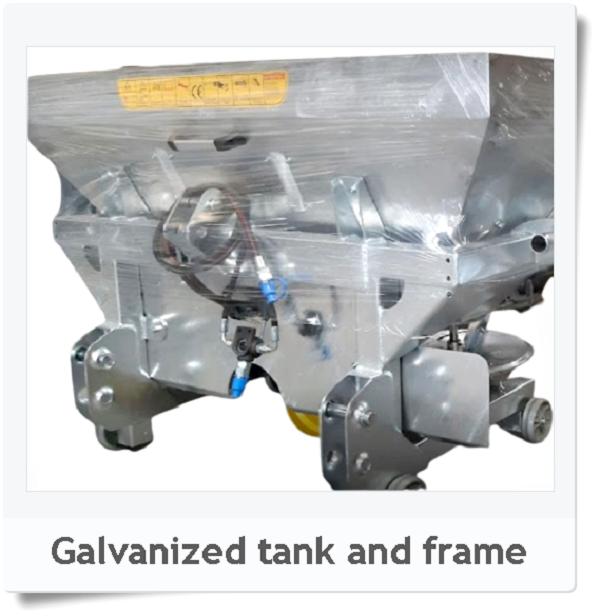

Fertilizer spreaders can be used in farms, fields and gardens. Fertilizer spreaders mounted to the Tractors through three point linkage system. It is powered by throughout a rod by tractor PTO and linked up by spreader discs and smashers in the tank. With the action of the output rods the discs turns and the fertilizer are spreading by the discs. The Smashers duty is to avoid the fertilizer to become lump and flowing continually. lt spreads fertilizer to furthest point in balance with the wings. lt spreads to the left, to the right, or sides. Through specially designed The outlet holes are provided on both sides equal fertilization. Spreading degree can be easily adjusted by means of the mechanical equal lever and hydraulic lift. Hydraulic setting system by means of the tractor can be optionally set by the amount of fertilizer.
Tecnical Features |
Units |
Models |
|
|
|
|
|
|
|
|
|
AFS 400 |
AFS 500 |
AFS 600 |
AFS 800 |
AFS 1000 |
AFS-D 600 |
AFS-D 800 |
AFS-D 1000 |
AFS-D 1200 |
AFS-D 1500 |
Number of Discs |
pcs |
1 |
1 |
1 |
1 |
1 |
2 |
2 |
2 |
2 |
2 |
Hopper Capacity |
lt. |
400 |
500 |
600 |
800 |
1000 |
600 |
800 |
1000 |
1200 |
1500 |
Total Width |
cm |
100 |
106 |
115 |
115 |
115 |
117 |
117 |
117 |
117 |
117 |
Working Width |
m |
18-20 |
18-20 |
18-20 |
18-20 |
18-20 |
24 |
24 |
24 |
24 |
24 |
Total Length |
cm |
110 |
140 |
140 |
150 |
150 |
170 |
170 |
180 |
180 |
200 |
Total Height |
cm |
113 |
120 |
125 |
130 |
130 |
120 |
120 |
130 |
135 |
140 |
P.T.O. |
rpm |
540 |
540 |
540 |
540 |
540 |
540 |
540 |
540 |
540 |
540 |
Weight |
kg |
105 |
120 |
130 |
140 |
150 |
200 |
205 |
210 |
220 |
230 |

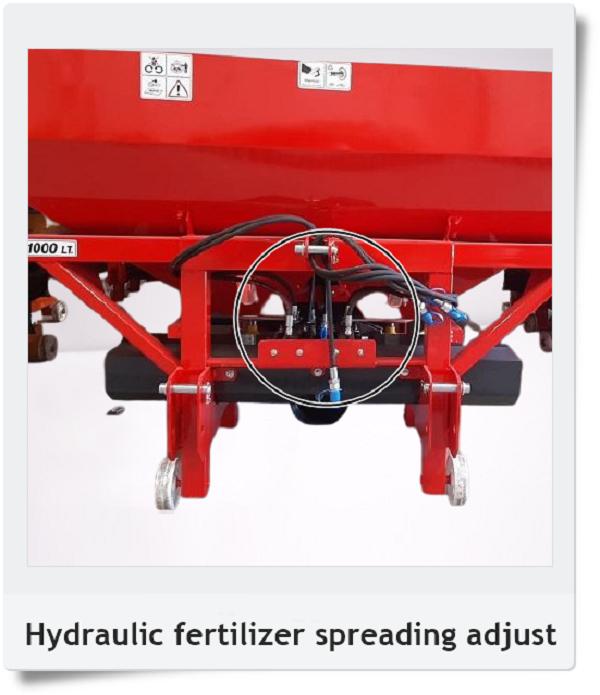

Fertilizer Adjust Sys. |
Opt. |
Mechanic Hydraulic |
Mechanic Hydraulic |
Mechanic Hydraulic |
Mechanic Hydraulic |
Mechanic Hydraulic |
Hydraulic |
Hydraulic |
Hydraulic |
Hydraulic |
Hydraulic |

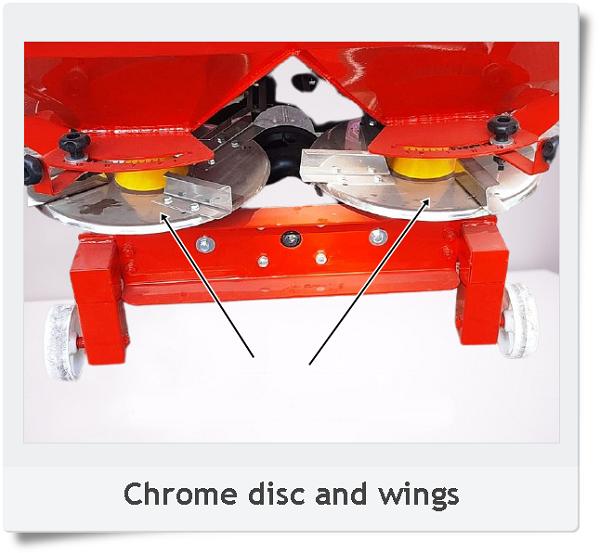

Stainless steel disc & wings |
- |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |

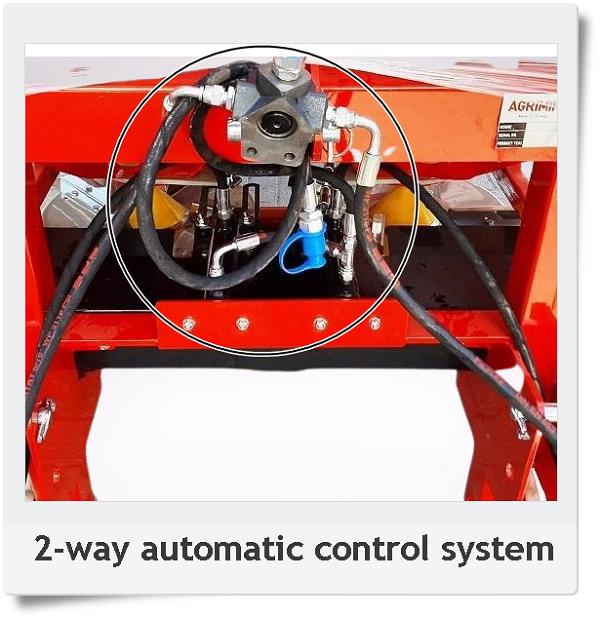

2-way Auto Control Sys. |
- |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
