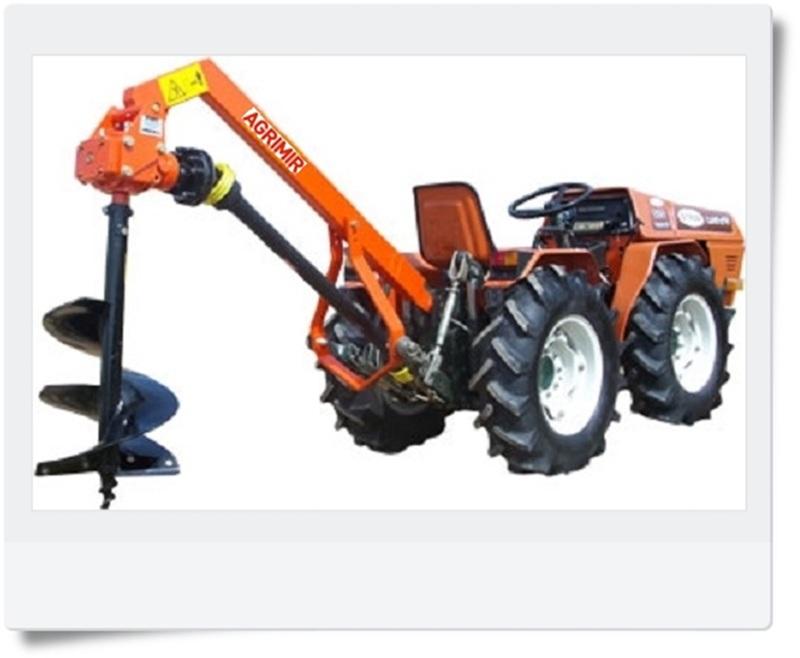

Mini Post Hole Digger

Mini post hole diggers offering a wide selection to meet most of needs in the market: Planting saplings, building a new fence or replacing an existing one, setting post for a structure, vineyards or above ground crops. Landscaping  or locating windbreaks. Our user friendly post hole diggers and augers make digging smooth, deep holes fast and easy.  You'll get maximum results without a lot of work. They are built tough and built to last.
Mini post hole digger is suitable for 15-40 HP sub-compact tractors equipped  with a category-1N  3-point hitch  and a 540 RPM PTO. It handles 15 cm, 20 cm, 30 cm and 40 cm (6", 8", 12” and 16”) diameter light duty 75 cm (30") length augers.  A support is provided for the operator to adjust the auger starting angle which guarantees a smooth and perpendicular hole to the earth surface. Spiral bevel gearboxes are used on the equipment having 2.92:1 gear ratio  and is protected by shielded PTO driveline  with over load clutch. The gearbox features tapered roller bearings and spring loaded seals. Our post hole diggers  are built for years of trouble-free work  with a minimum amount of maintenance.



Tecnical Features

Units

Models

HD75

Hole Depth

cm

75

Auger Diameter

cm

15-20-30-40

PTO

rpm

540

PTO Drive Line



Protected by an overload clutch

Tractor  Power

hp

15-35

Tractor 3-Point Hitch



Category 1N
