General Details:

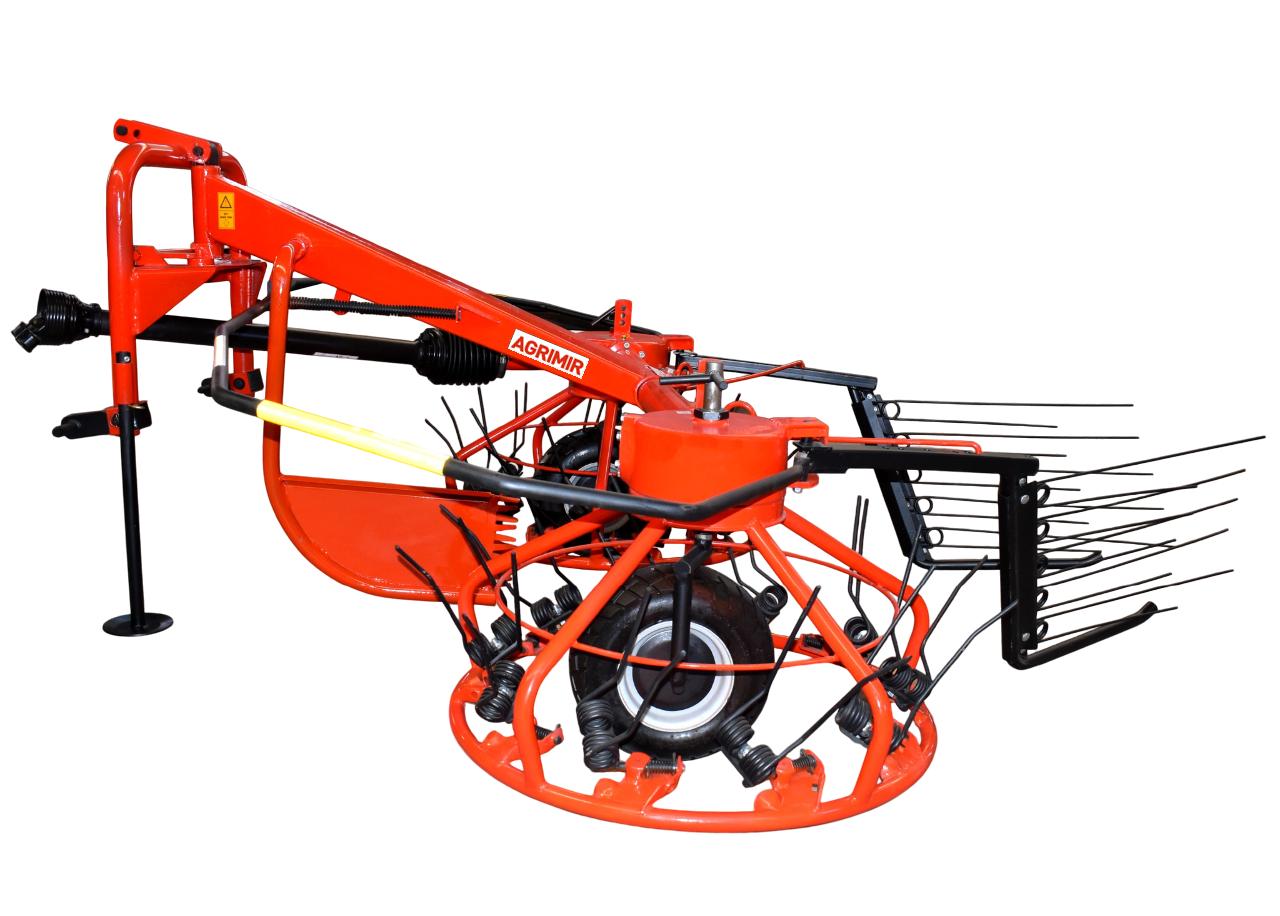

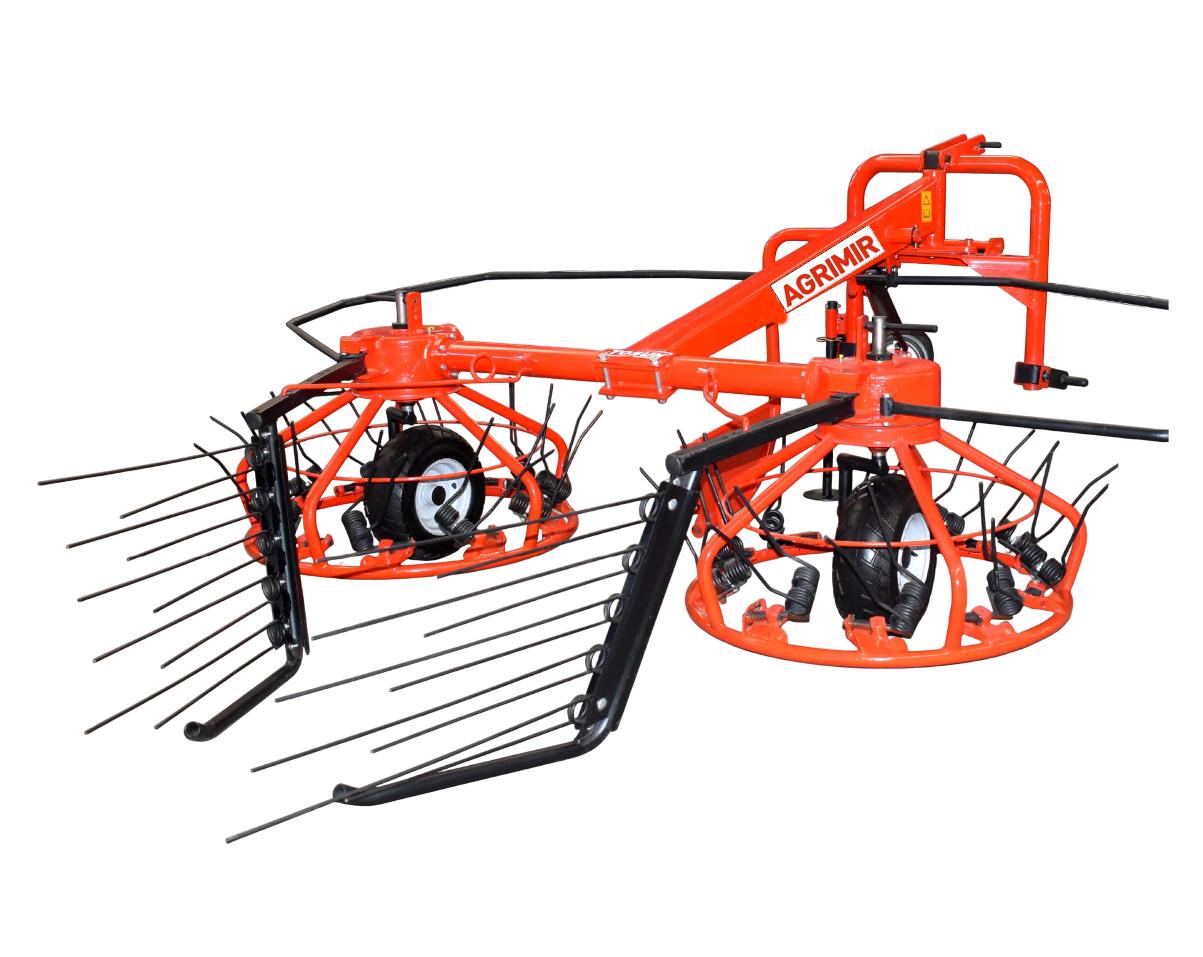

It is an innovative agricultural tool that can perform both hay spreading and collection operations with a single machine.
Thanks to the easy changing of the spring direction, our machine can collect or spread hay piles from different directions, thus offering farmers ergonomic use and improved performance. It saves farmers time and labor.
Thanks to its steel spring system and adjustable wheel structure, it easily adapts to different terrain conditions.
With the hub lever mechanism, the operator can quickly change the collection or spreading mode and maintain the workflow uninterrupted.
- Spring System: Steel spring, changeable direction
- Wheel System: 2 wheels, adjustable up/down
- Mode Switching: Collecting/distributing mode with hub arm mechanism
- Advantages: Two jobs with one machine, distributing/collecting, ergonomic use, time saving, adaptable to terrain
Tehnical Details:
Working Width: 3.5 Meters
Type: Rotary Type (Horizontal Rotation)
Weight: 410 Kg
Transmission: 2 Units
Shaft: 2 Units
Side Curtain Wire: 2 Units
Rear Curtain Wire: 2 Units
Wheels: 2 Units
Collector Wire: 20 Wires
Number of Gears: 2 Units
Tractor Power: 24 Hp and above
Required Tractor Speed: 540 Rpm
